Beok Thermostat Gas Boiler Smart Home Floor Heating System Central Heating Wiring Hub Controller Wifi Tuya Thermostat Actuator

$12.99
$22.99
$12.99
Write a Review
Earn 6 Reward Points. Learn More...

Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.

Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.

When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.

We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.

You will also be asked to provide an email address, to which we will send confirmation that your order was placed.

Color: TOL47-WIFI-WP
Add to wishlist Added to wishlist
Terms & conditions

Order in the next
to get it by
Ask us any Question
Details
  • SKU: 14:175#TOL47-WIFI-WP;200007763:201336100
  • Brand: Bulky Best - Wholesale shopping made EASY!
  • Type:
  • Availability: In Stock
Description
  • Brand Name : beok
  • Hign-concerned Chemical : None
  • Material : Anti-flammable PC
  • Origin : Mainland China
  • Voltage : 220 V
  • Type : Floor Heating Systems
  • Model Number : CCT-10 hub controller
  • Certification : CE
  • Central Control Hub Controller : CCT-10
  • Tuya WIFI Thermostat : TOL47/TR8B/TR9B/TCR7/TCR8 WIFI
  • Normaly Closed Electric Thermal Actuator : RZ-AN230-NC/RZ-D07-230NC
  • Hub controller Function 1 : central heating controls
  • Hub controller Function 2 : main controller unit
  • Hub controller Function 3: : suitable to control multi zone central heating
  • Hub controller Function 4 : gas boiler central floor heating system
  • Hub controller Function 5 : main electrical panel load center
  • Hub controller Function 6 : 30/60/90/120 Second Delay
  • Hub controller Function 7 : 8 Channel can make 8 rooms with different temperatures
  • Hub controller Function 8 : Work with Gas Boiler/Pump/Thermostat/Actuator

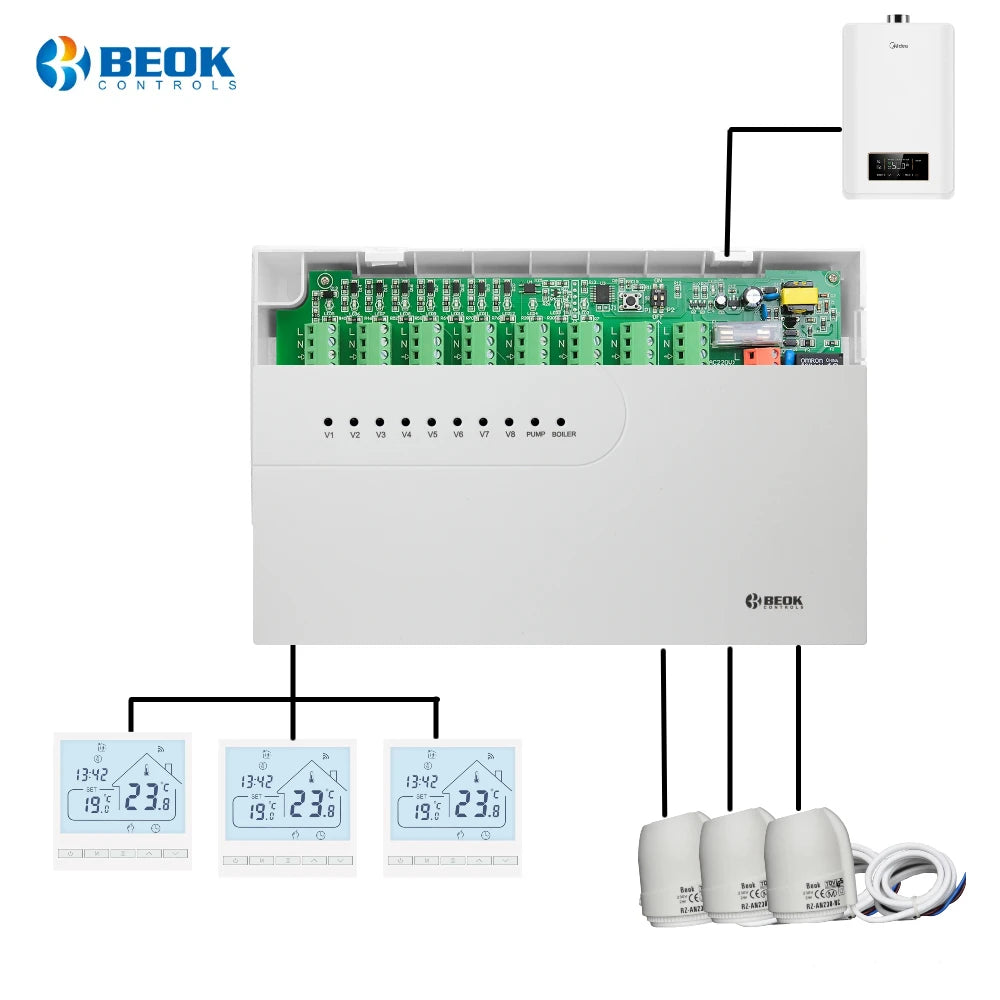

1. Subcontroller thermostats

2. Boiler (Dry Contact)

3. NC Electric Thermal Actuators (normally closed)

4. CCT-10 8-Channels Hub Controller

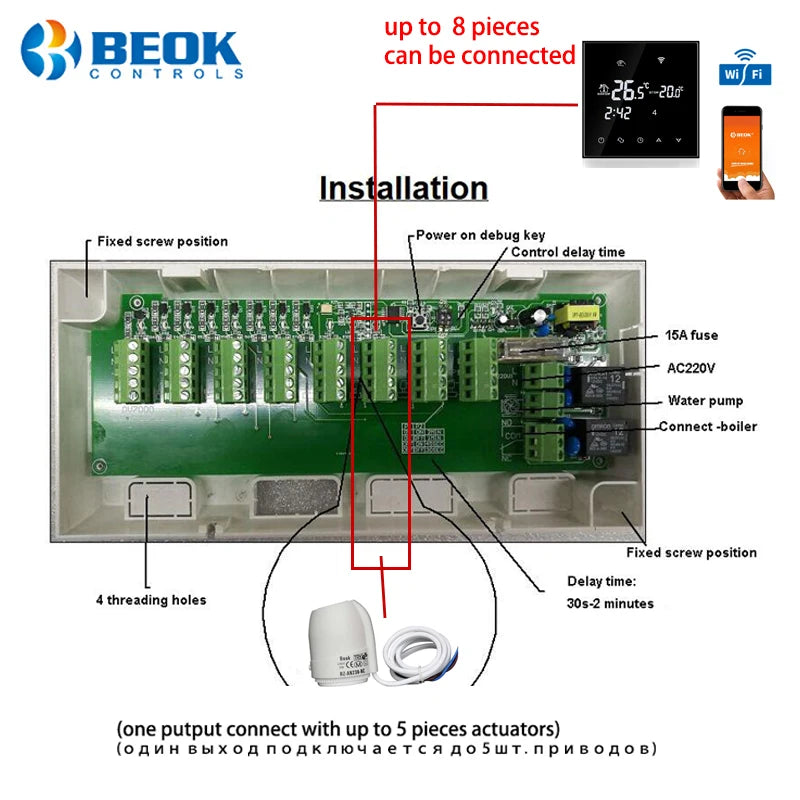

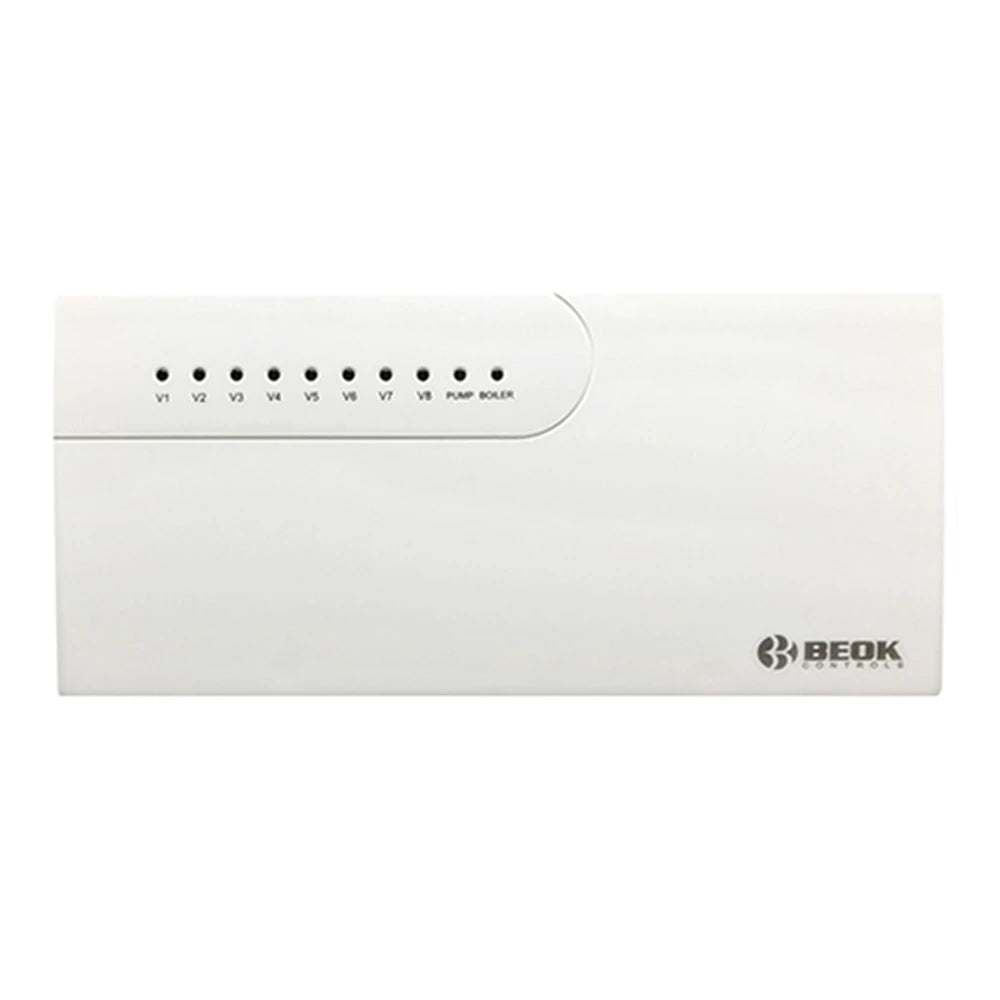

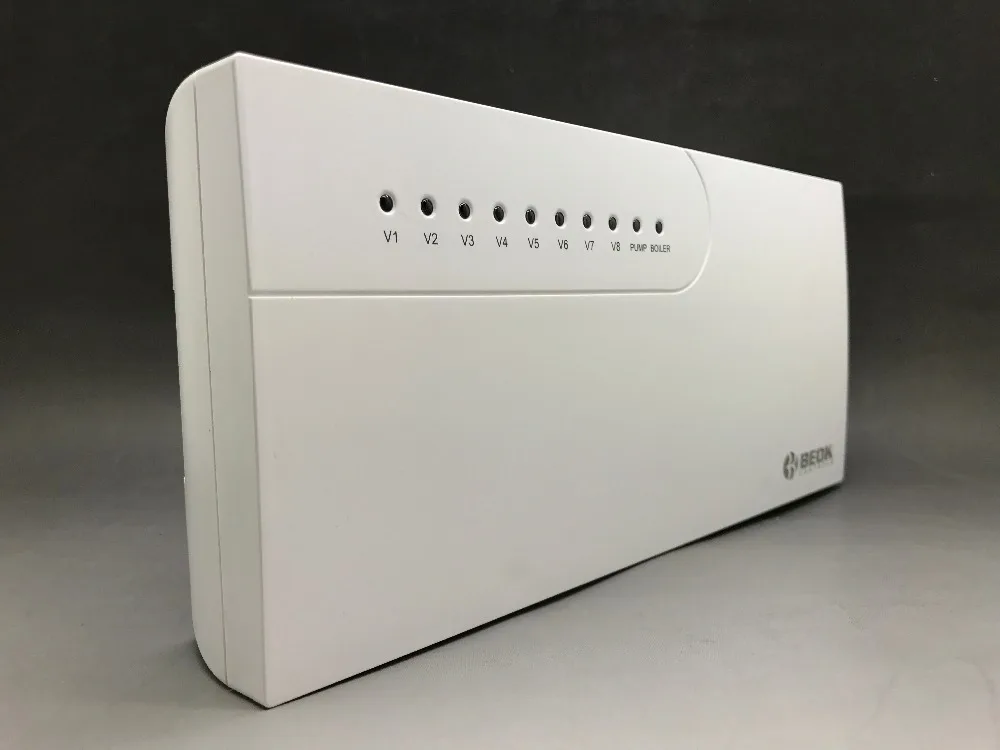

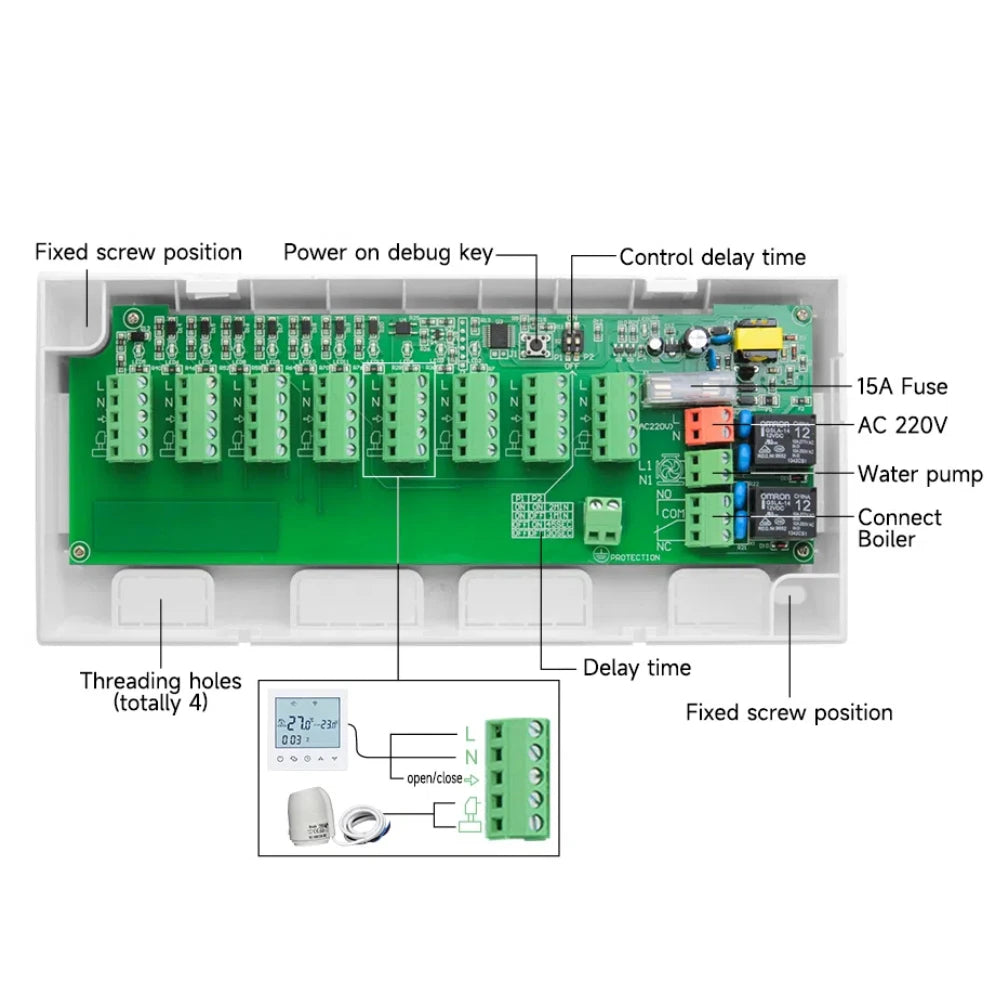

CCT-10 Hub controller

CCT-10 Hub Controllers is used in Gas Boiler floor heating system. It can control boile, circulating pump, thermostats and actuators.

According to user’s set temperature, hub controller can control to open or close boiler/circulating pump/electric actuators to achieve the purpose of comfort and energy consumption saving.

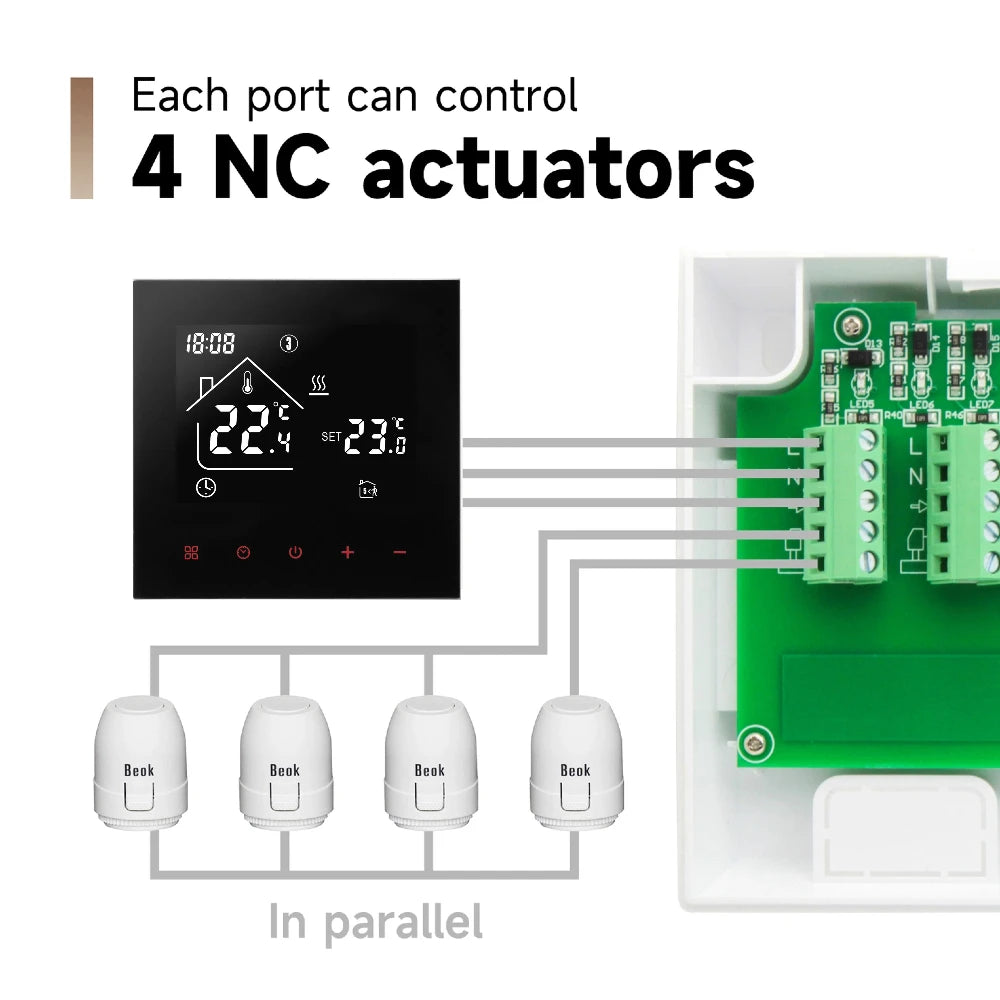

One Hub can control up to 8 pcs thermostats to make 8 room have different temperature. 1 Thermostat can control up to 4 pcs NC actuators.

Package list

CCT-10 hub controller *1

Technical Description

Power Supply: 170-240VAC 50\60HZ

Current Load: 3A

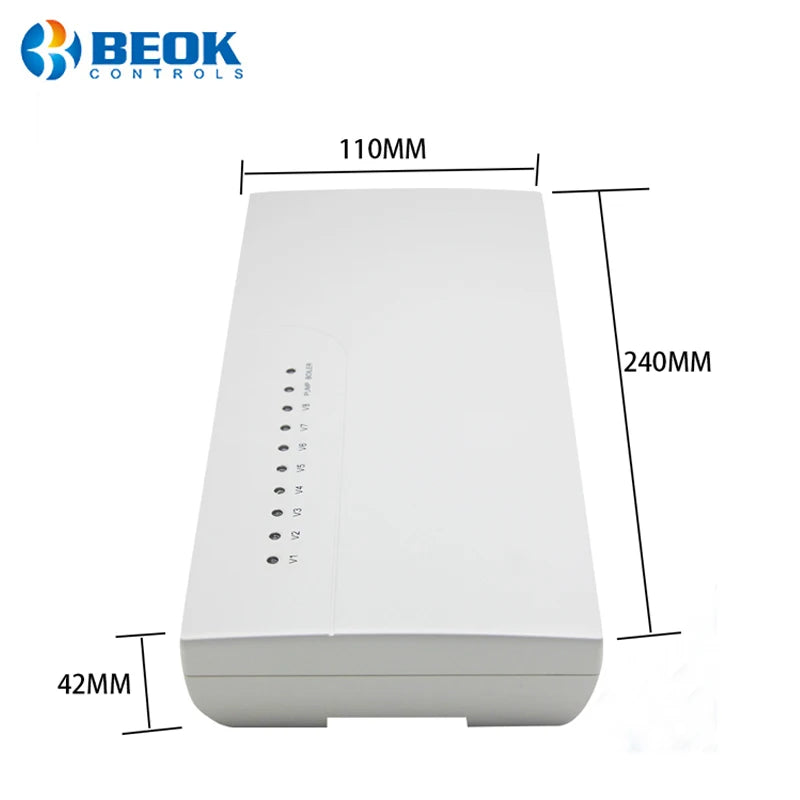

Size: 240mm X 110mm X 42mm

Working Temp: -20 - 60 celsius

Storage Temp: -20 - 70 celsius

Color: White

Delay Time : 30/60/90/120 Seconds delay can be set

Logo: Random delivery with and without logo (if you have your needs, please contact us)

Notice ! ! !

1. Due to product upgrades, the CCT-10 hub controller is only used to connect Normally Closed(NC！！) electric thermal actuators！！！

2. This is wired hub controller, the hub and the thermostat and the actuator are all wired. WiFi means that the thermostat can be controlled by the mobile phone through the APP.

3.CCT-10 needs to be connected to the thermostat via wires, it cannot be connected to the thermostat via wifi or wireless signal

Attention

(1) Before installation, removal, cleaning or maintenance of controller, you must cut off the main power, unplug the fuse or
turn off the switch circuit breaker;

(2) You must read the instruction in detail before installing the controller, and strictly operate thermostat accordance to
instruction;

(3) Controller should be installed by professional engineering company with appropriate safety knowledge;
(4) All wires connections should meet local and national standard;

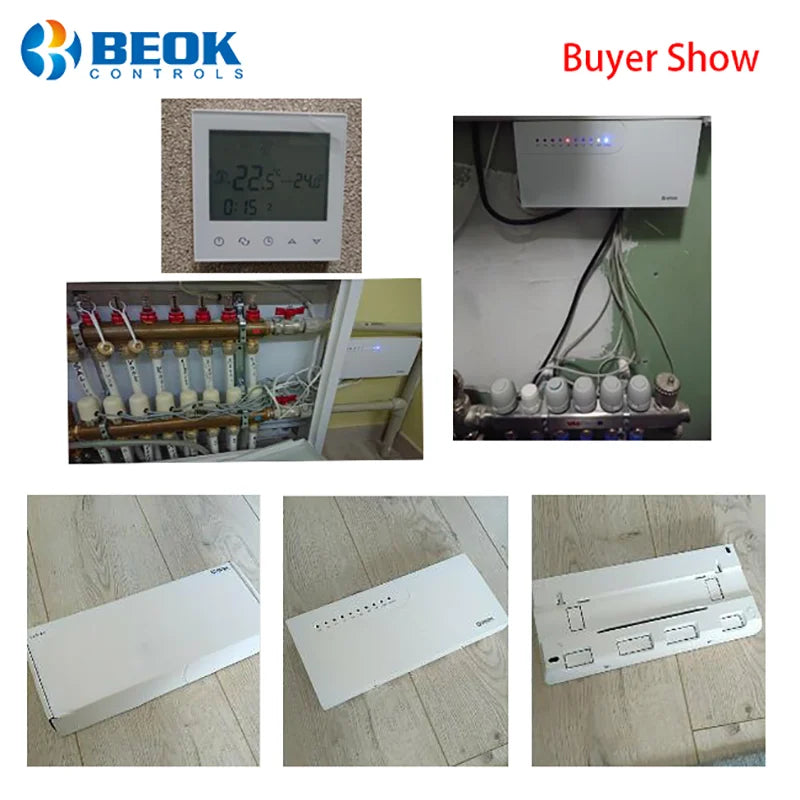

Buyer Show

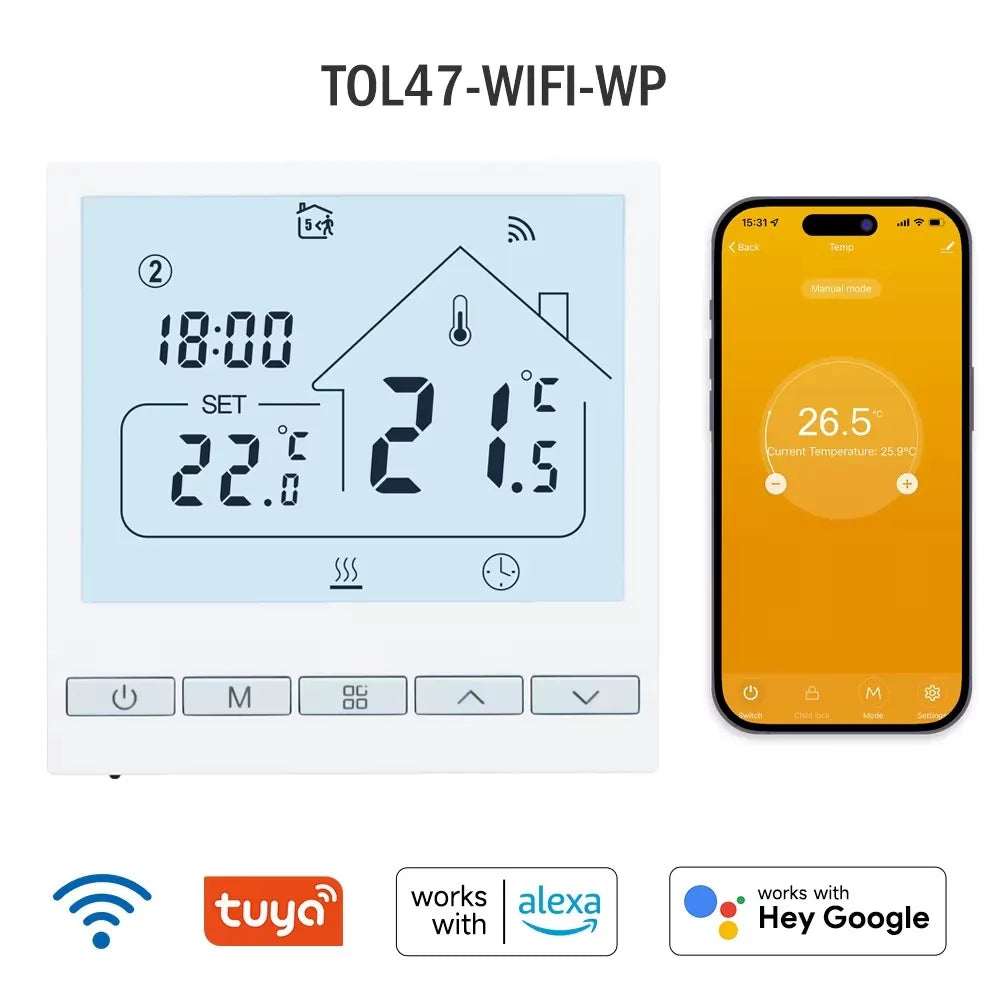

Thermostat

The thermostat whose name contains “WIFI” can be controlled by mobile phone or voice assistant, and the thermostat whose name does not contain wifi does not include wifi function.

The thermostats in this link don't include floor sensor. If you want to measure and control the temperature under the floor, you need to purchase the floor sensor by yourself

Main Functions and Characteristics

1. Large screen display and touch button
2. Power-off memory function
3. Real-time data save function
4. 5+2 or 6+1or 7days six periods program schedule
5. Anti-freezing function
6. 3 sensor modes can be setting
7. Selectable 60mm European hidden box.
8. With child lock function

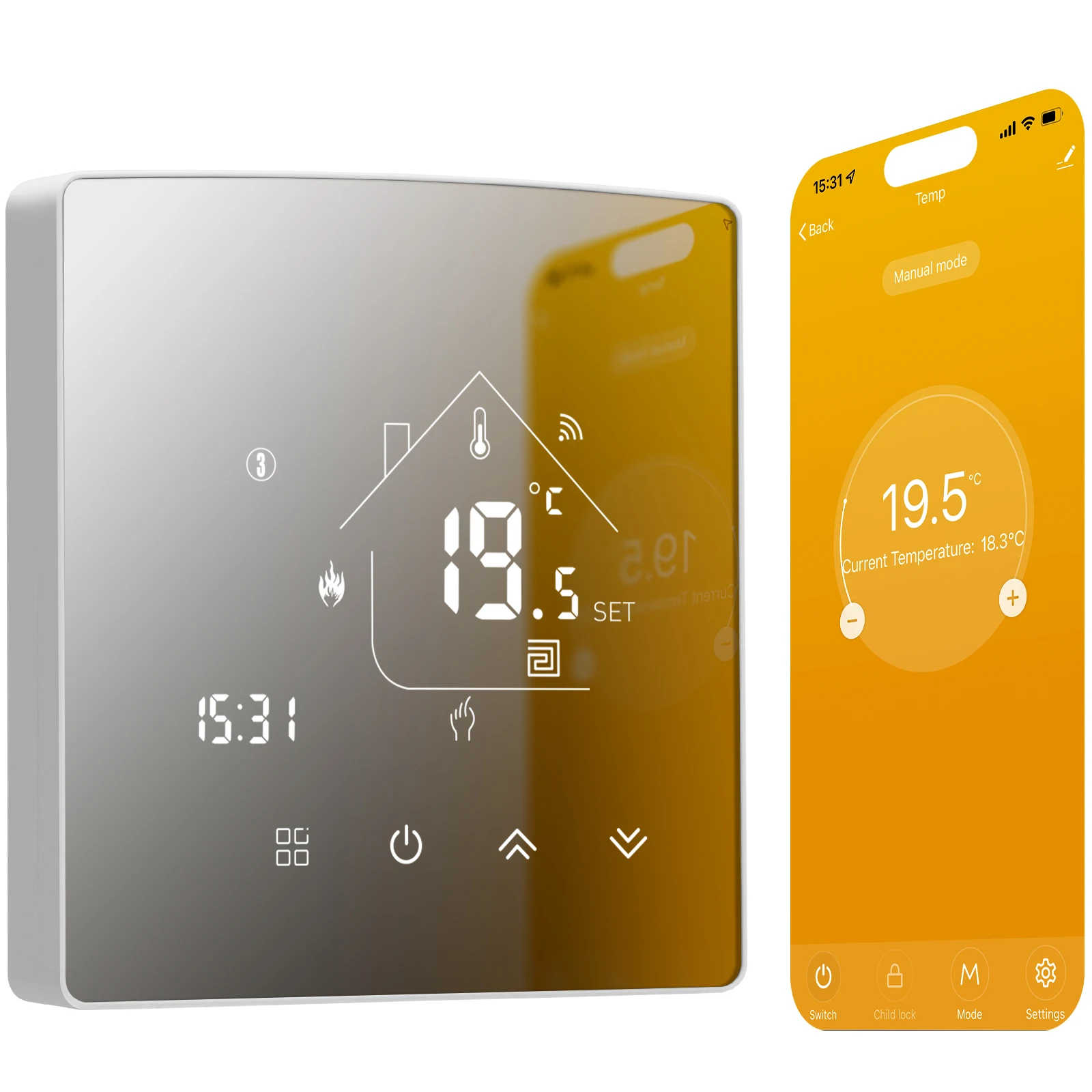

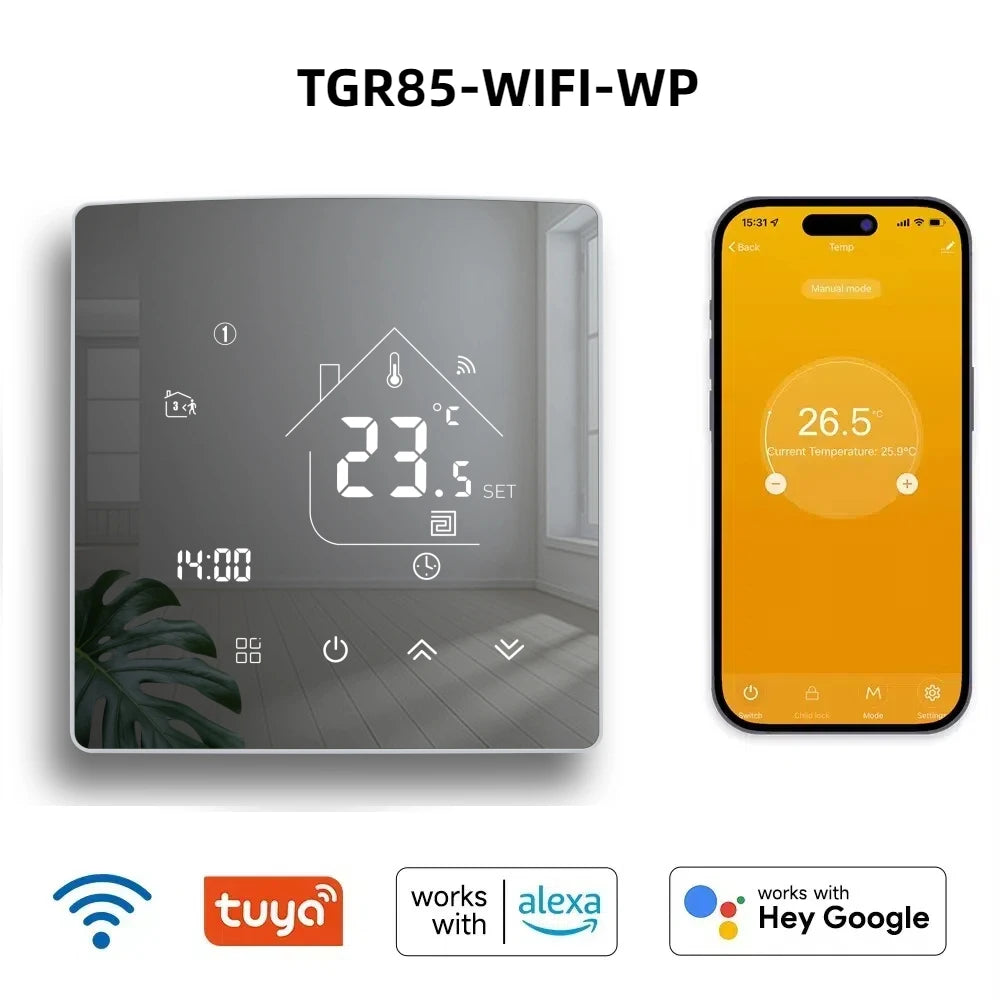

WIFI Thermostat Function
1. Smart Phone Remote Control via Tuya smart/Smart life App
2. Can be shared with family members, support multi-person control
3. Voice Control via Alexa and Google

Technical Description

Power Supply: 1100-240V; 50-60Hz
Current Load: ≤3A
Power Consumption: <0.3W
Warranty time : 2 years
External Material: PC+ABS (flame retardant)
Set Temp. Range: 5-60 Celsius
Floor Set Temp. Range: 5-99 Celsius
Accuracy: ±0.5 Celsius (TOL47 is 1 ℃)

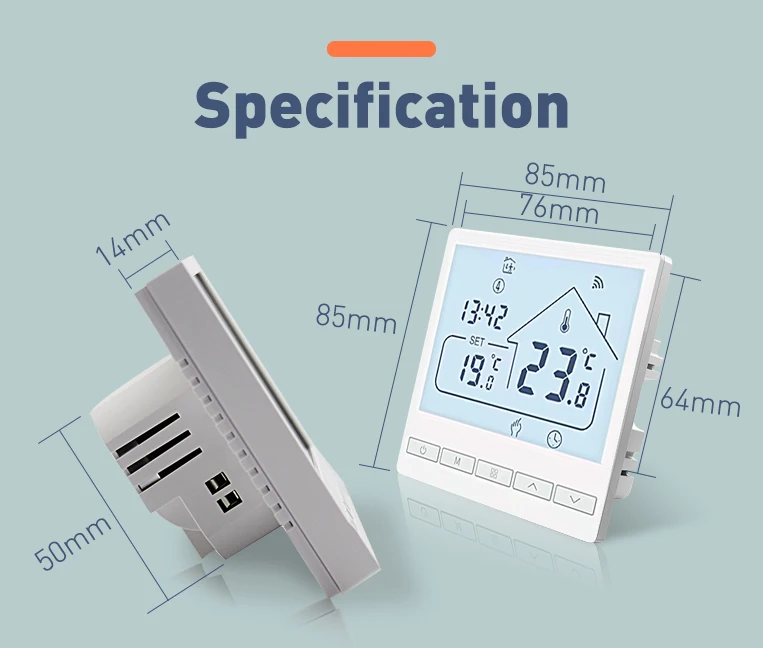

Dimension: 86x86x45mm
Storage Temp.: -5~55Celsius
Certificate: CE/ROHS

Package list

Thermostat * 1
User Manual * 1
Screws * 2
(Don‘t include external floor sensor), please buy it in the store if you need it)

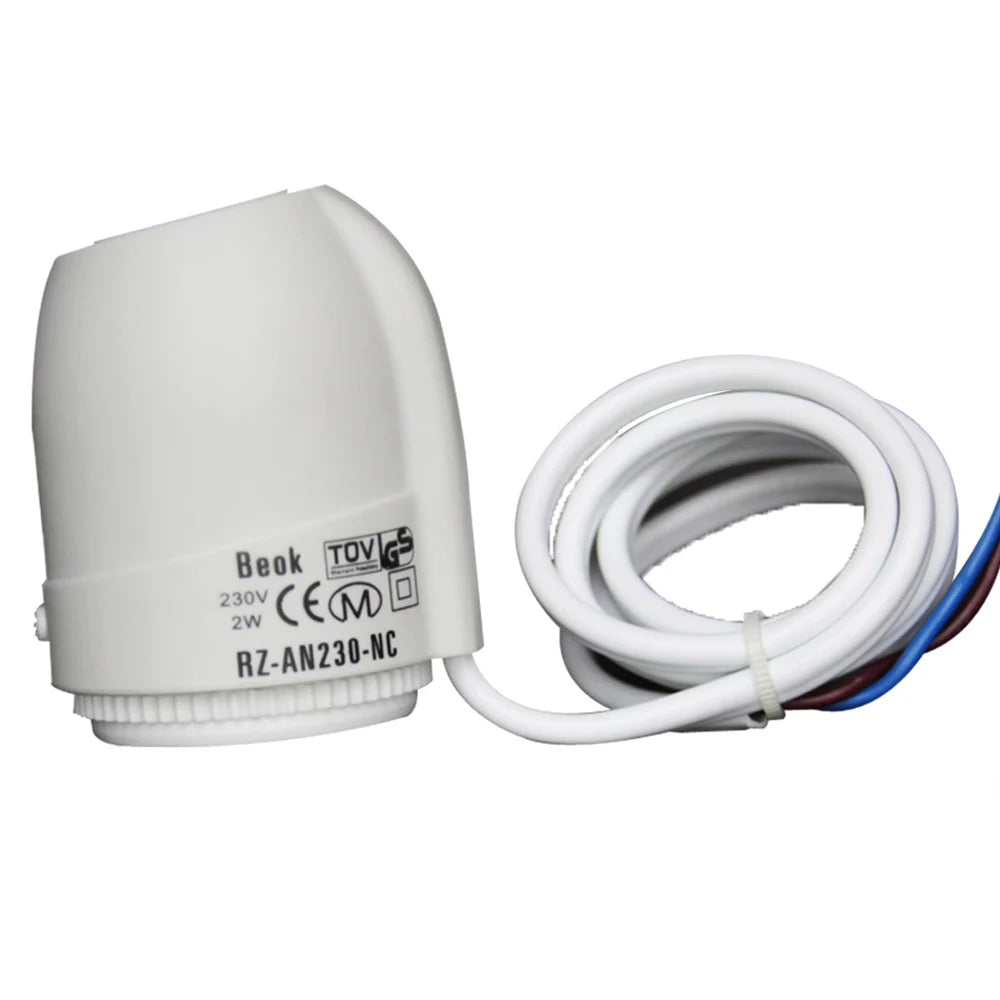

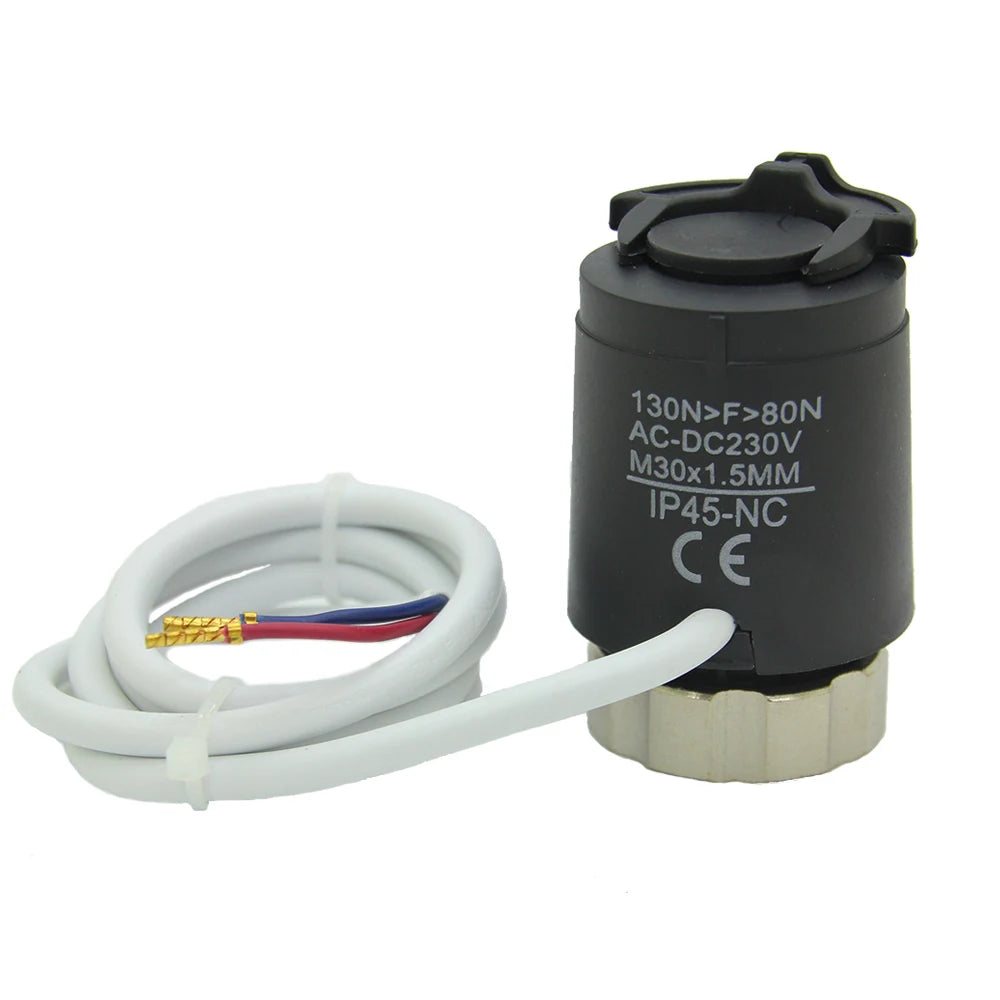

M30*1.5 Thermal Electric Actuator

RZ-AN-230 thermal actuator is a two point form switching device which has been tested by TUV. It is usually applied to control radiator, floor heating system or zone valves. It can close the flux of system under the control of room thermostat and otherelectrical switch automatically . This model only can be used as on-off administrator.

Package list

Normal Close actuator *1

Technical Description

Model：Normally Closed Avtuator

Working Voltage：230VAC±10%

Initial Current：About 50MA

Power Consumption：2W

Protection Grade：IP41

Working Journey：3.5~3.6mm

Working Temperature：-20~50

Storage Temperature：-25~60

Security Class：II(Double Insulation)

Cable Length：65cm

Running Time：180seconds (open-closed)

CE Standard：EN60730

Actuator Used to Connect with Manifolds---

Product Advantage

1. Easy to connect with power:
user only needs to reserve main supply in the place of manifold before installation, and directly connect one three-wires cable to
thermostats. So user do not need professional wiring workers;

2. Easy to connect wires: user only needs to connect wires according to wire colors;

3. Easy maintenance after installation: all wires are very clear and neat;

4. To protect boiler or pump:
because hub controller has time delay function, it opens boiler and pump only when water valve is totally opened, and closes boiler when temperature reaches requirements. Time delay to open boiler and pump when heating can realize the purpose of energy-saving;

5. To extend boiler and pump life:
hub controller only start boiler and pump in appropriate temperature, in this way, it will reduce boiler and pump running time, to
extend their working life.
