Laminate Floating Carpet Wooden Bamboo Floor Heating System Foil Heated Mat Kit With Wifi Tuya App Control Thermostat Heater

To Calculate The Required Area

To Specify The Required Materials It Is Needed To Determine The Available Floor Area To Heat. This Area Corresponds To The Total Area Of The Space Minus The Surface Occupied By Fixtures (Such As Kitchen Units, Toilet, Bathtub, Etc). The Area To Heat Is Equal To The Surface Where Circulation Is Possible.
Step 1: Measure Room Dimensions
Work Out The Total Floor Area. If The Overall Room Is Rectangle In Shape, For Instance Like In The Image 5m By 3.4m, The Total Area Is 5 x 3.4 = 17m².
Step 2: Disregard Any Area Taken Up By Furniture
Work Out How Much Of The Floor Space Is Taken Up By Fixed Objects. In The Example Shown The Wardrobe Occupies An Are Of 1.5 x 1 = 1.5m²
Step 3: Determine The Floor Area To Be Heated
The Total Floor Area To Be Heated Will Be The Total Area Minus The Area Occupied By Fixtures: 17 – 1.5 = 15.5m².
Step 4: Select The Foil Heating Mat Size
Due To The Fact That There Must Be a Minimum Distance Of 5cm Between The Foil Heating Mat And The Walls, And Also Because When After Cutting And Turning The Foil There Will Be Always a Small Separation, The Total Area Of The Mat Should Never Be Above 85% Of The Heated Area.
The Maximum Heating Mat Area Will Be 15.5 x 0.85 = 13.18m². The Largest Foil Mat Available Is 12m² So There Is The Need To Combine 2 Systems. A Possibility Would Be 7m² Plus 6m².

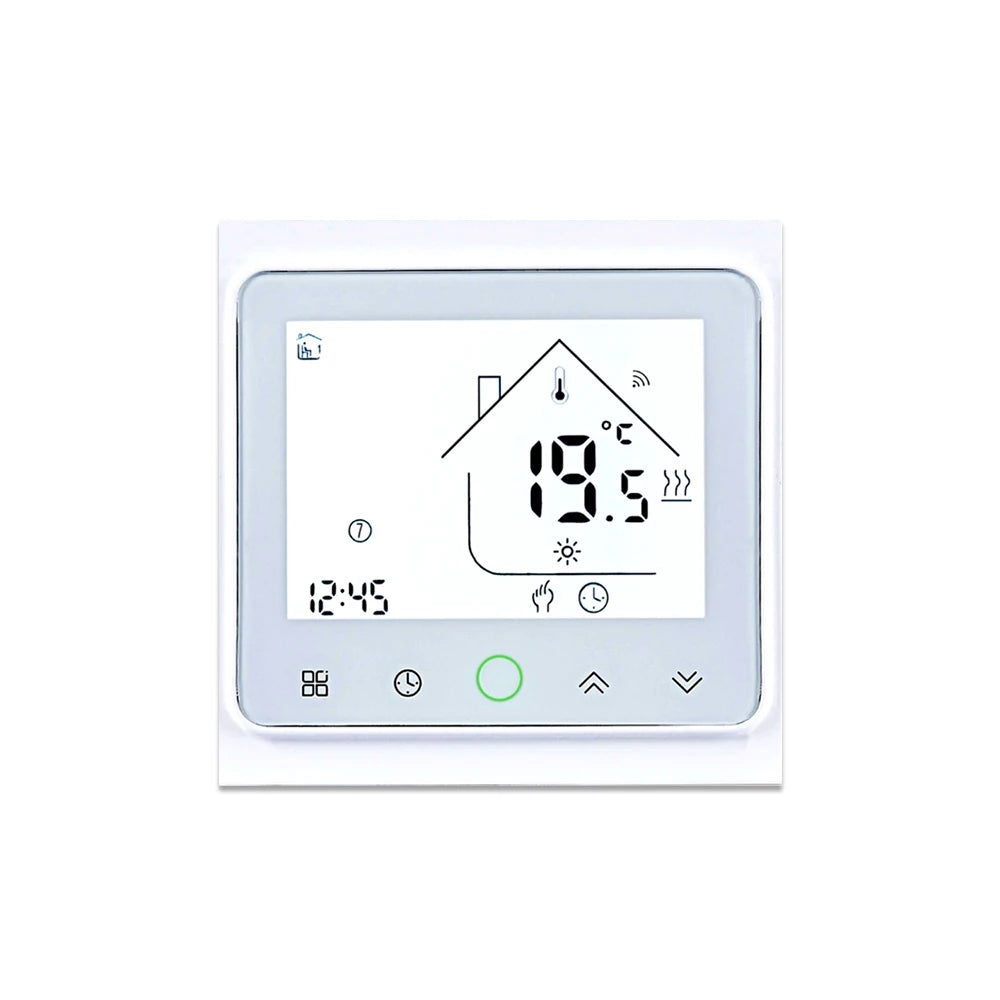

The System Must Be Controlled Via Thermostat And We Recommend The Use Of Floor Insulation In Order To Improve Savings And System Performance.
Vinyl Or Carpet Flooring Cannot Be Installed Directly On Top Of The Foil Heating Mats. When These Floor Coverings Are Used, The Dual Overlay System Should Be Installed.
To Calculate The Required Area

Warning

1.Please Do Not Order Too Large. Ordering 85% Of The Room Area Is Enough. If You Have Ordered Too Large, Please Do Not Cut Off The Heating Wires. Please Cut Off The Foil And Reduce The Spacing Between The Heating Wires. This Will Effectively Reduce The Area Of The Heating Mats.
2.Please Make Sure The Package Is Complete And Not Damaged Before Signing. If It Is Damaged, Please Refuse To Sign And We Will Give You a Full Refund.If You Think The Damaged Packaging Will Not Affect The Product, Please Take a Photo And Ask The Courier To Issue a Damage Certificate Before Signing For It.
3.After Opening, Please Check Whether The Resistance Of The Product Is Consistent With The Label. If It Is Inconsistent, Please Take a Photo And Tell Us. We Will Refund You After Verification. If You Don't Have Tools, Please Unfold It And Connect The Power, Check It After One Hour Later,If The Heating Wire Temperature Is Higher Than The Ground, It Is Good.If Not Please Tell Us.We Will Refund You After Verification.
4.If There Is a Problem After The Product Is Installed, It Must Be Damaged By The Installer. Please Tell Us And We Can Replace The Product For You As Quickly As Possible At Cost Price.
