50 to 100 Meters 12K Floor Warm Heating Cable 33ohm/m Carbon Fiber Heating Wires heating wire coil

10 to 100 Meters 12K Floor Warm Heating Cable 33ohm/m Carbon Fiber Heating Wires

Product Details:

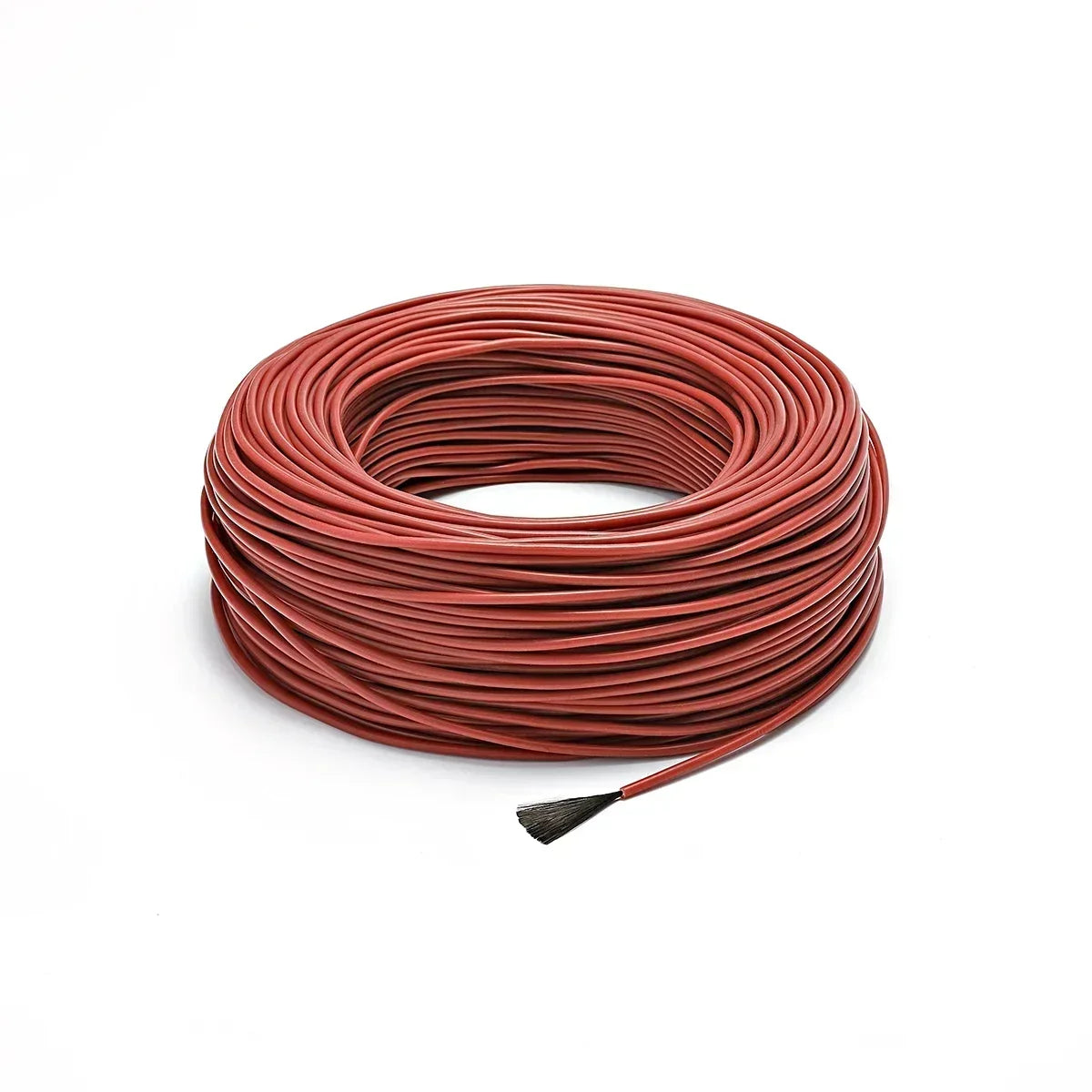

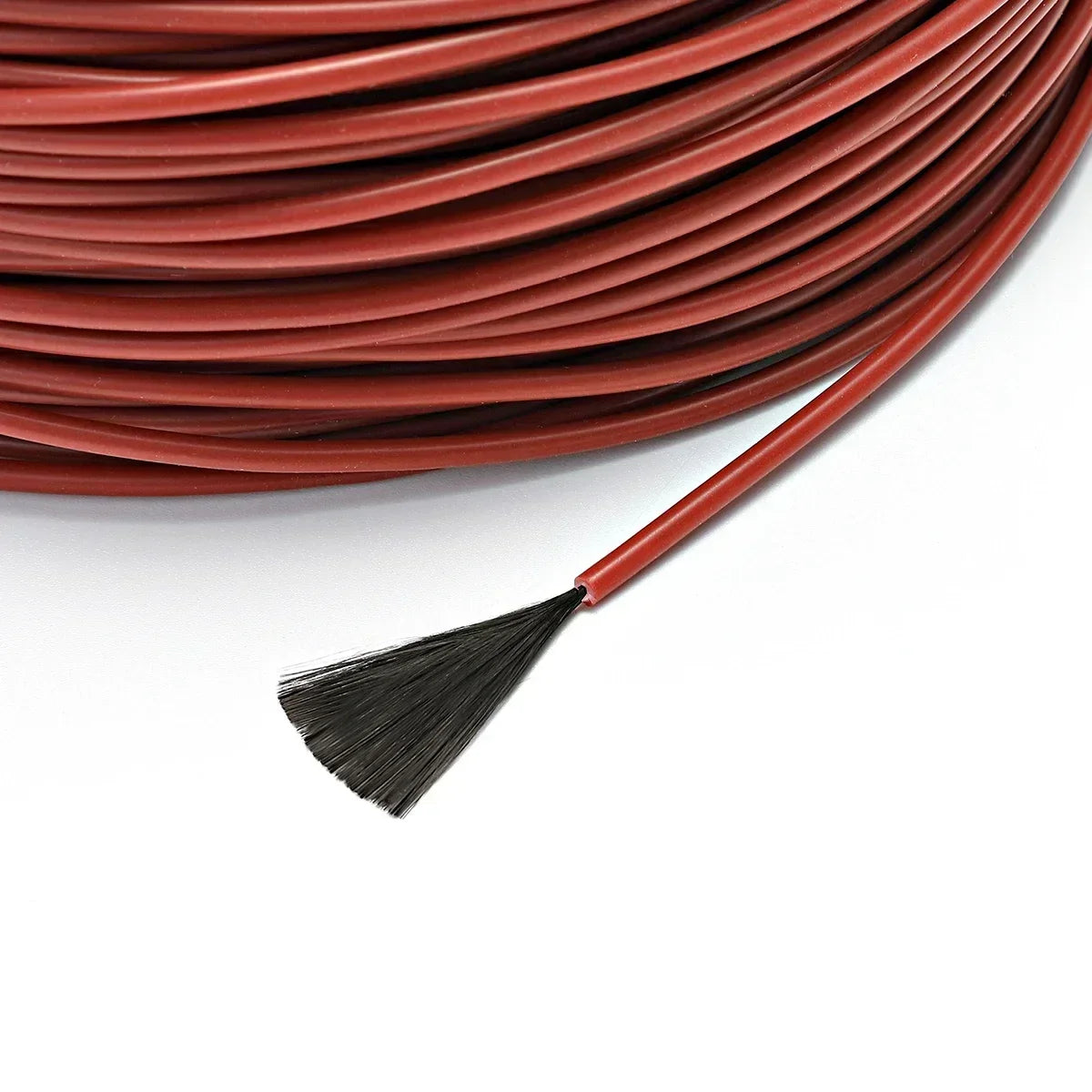

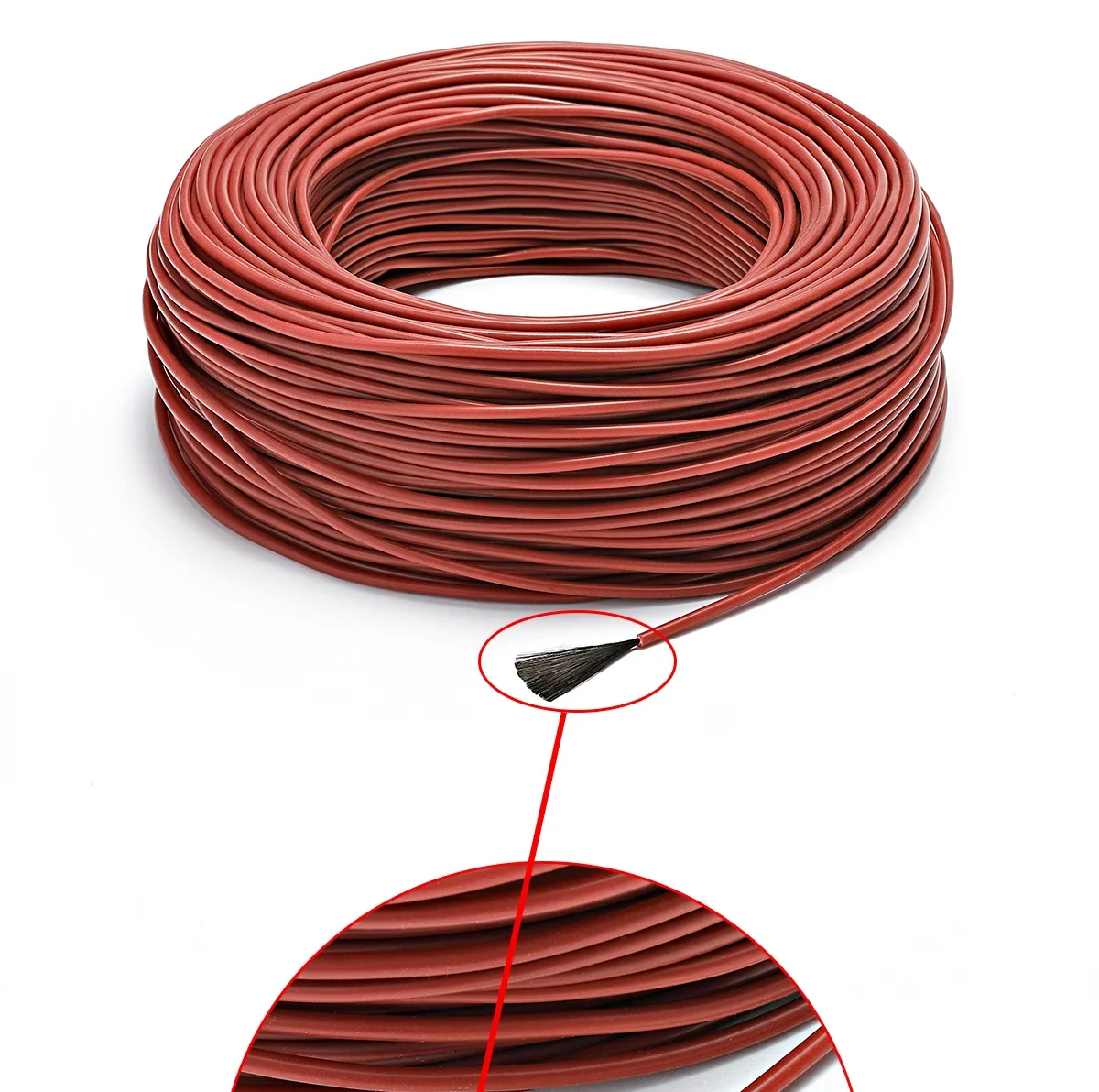

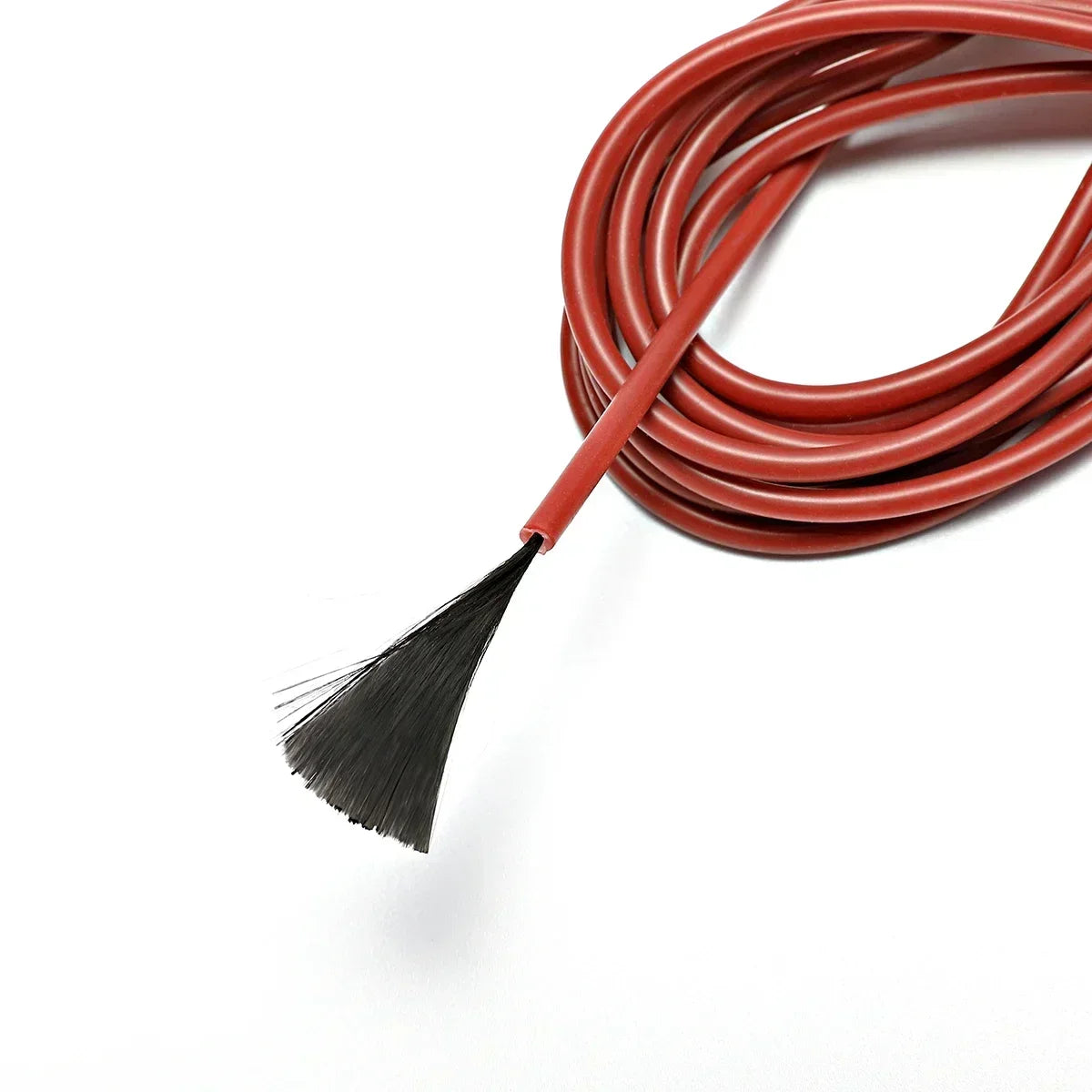

Product Name:  Carbon fiber heating wire

Insulating materials: Silicone rubber

Temperature: 200 degrees celsius limit

Heating conductor: 12K

High voltage test: 3000V

Leakage current: 0.05mA/m

The product can withstand the power of power: 25W/M

Diameter: 3±0.2 MM

Optional colors: Red

Infrared wavelength: 8UM-18UM

Conductor resistance: 33±10% Ω / M

Length: (custom, not less than 10 meters)

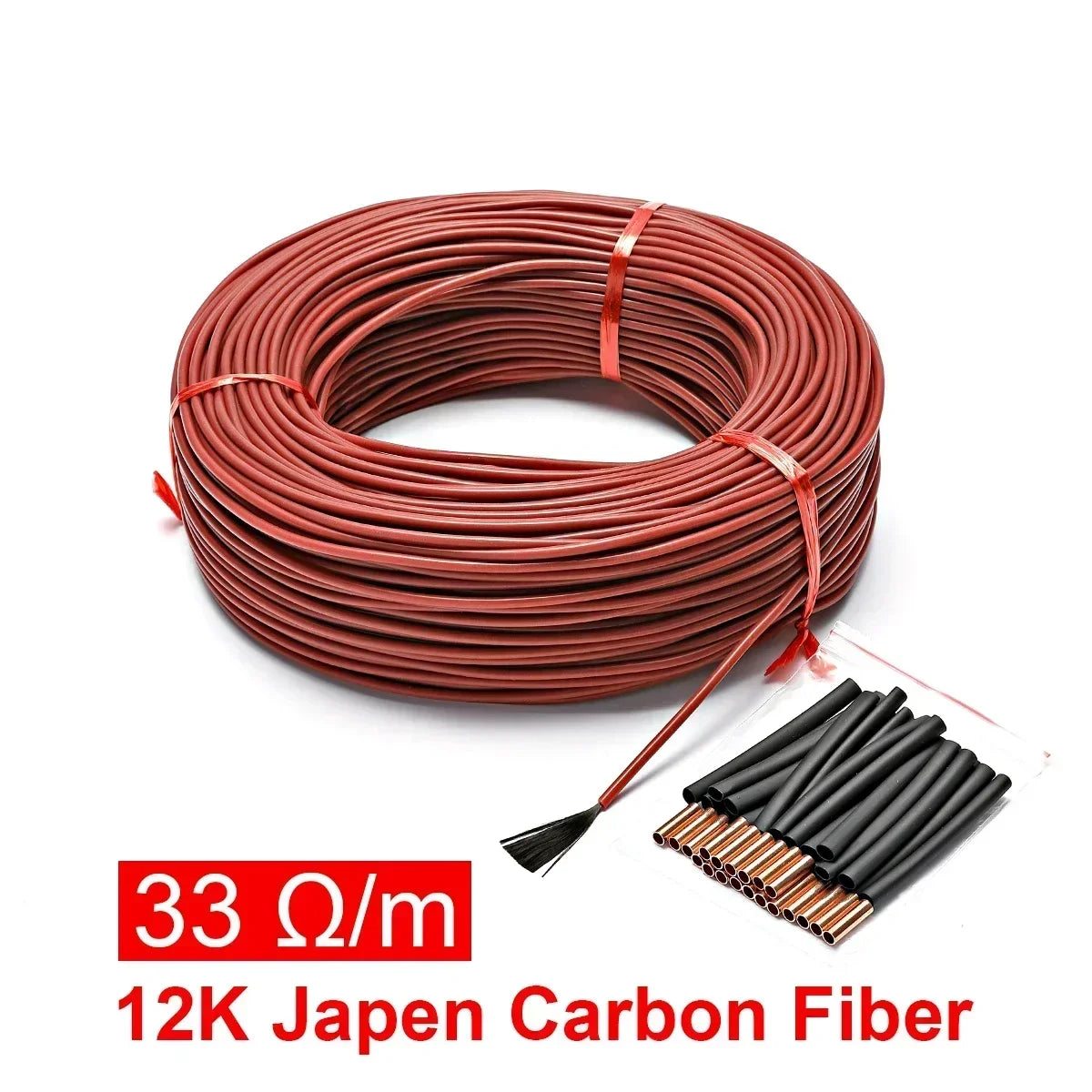

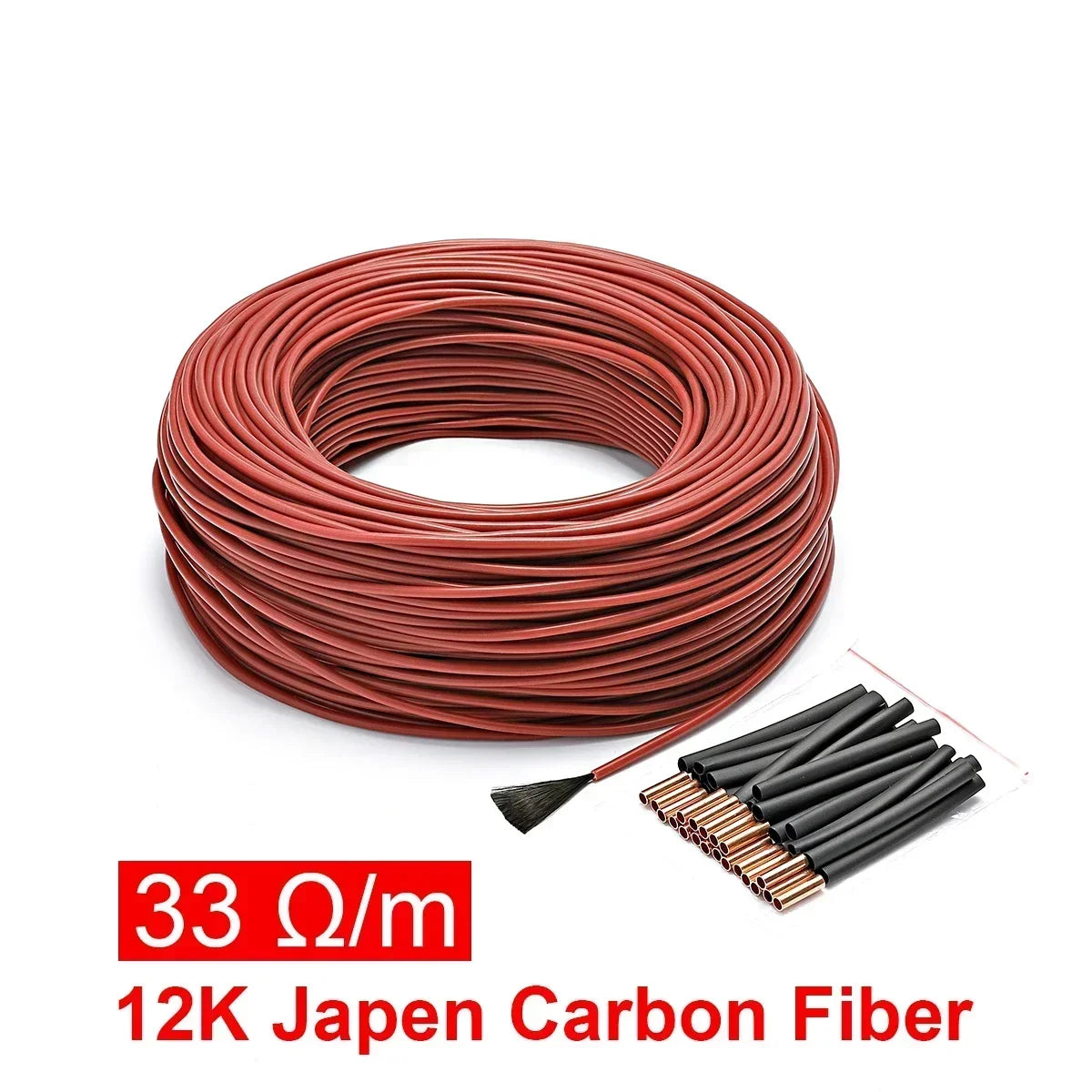

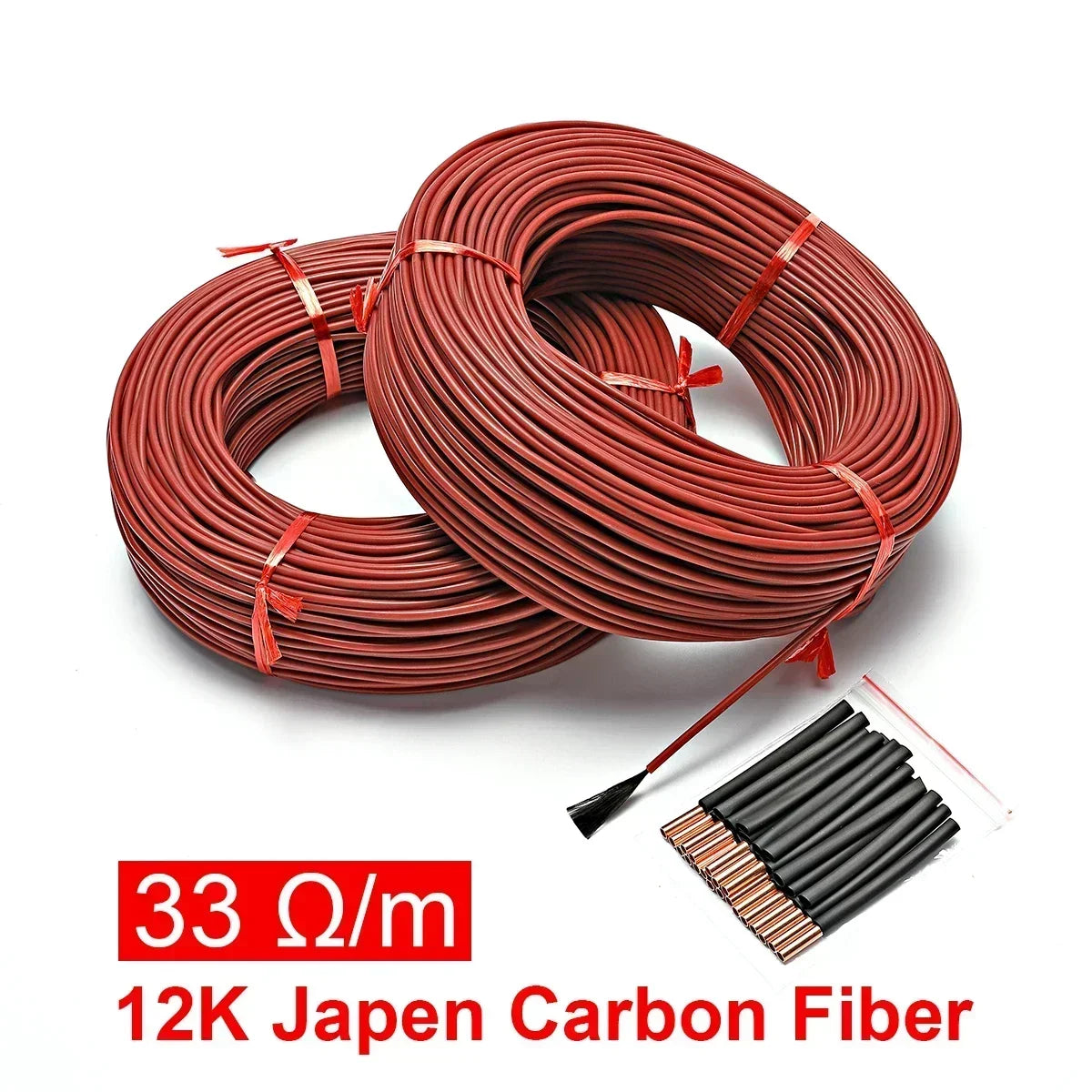

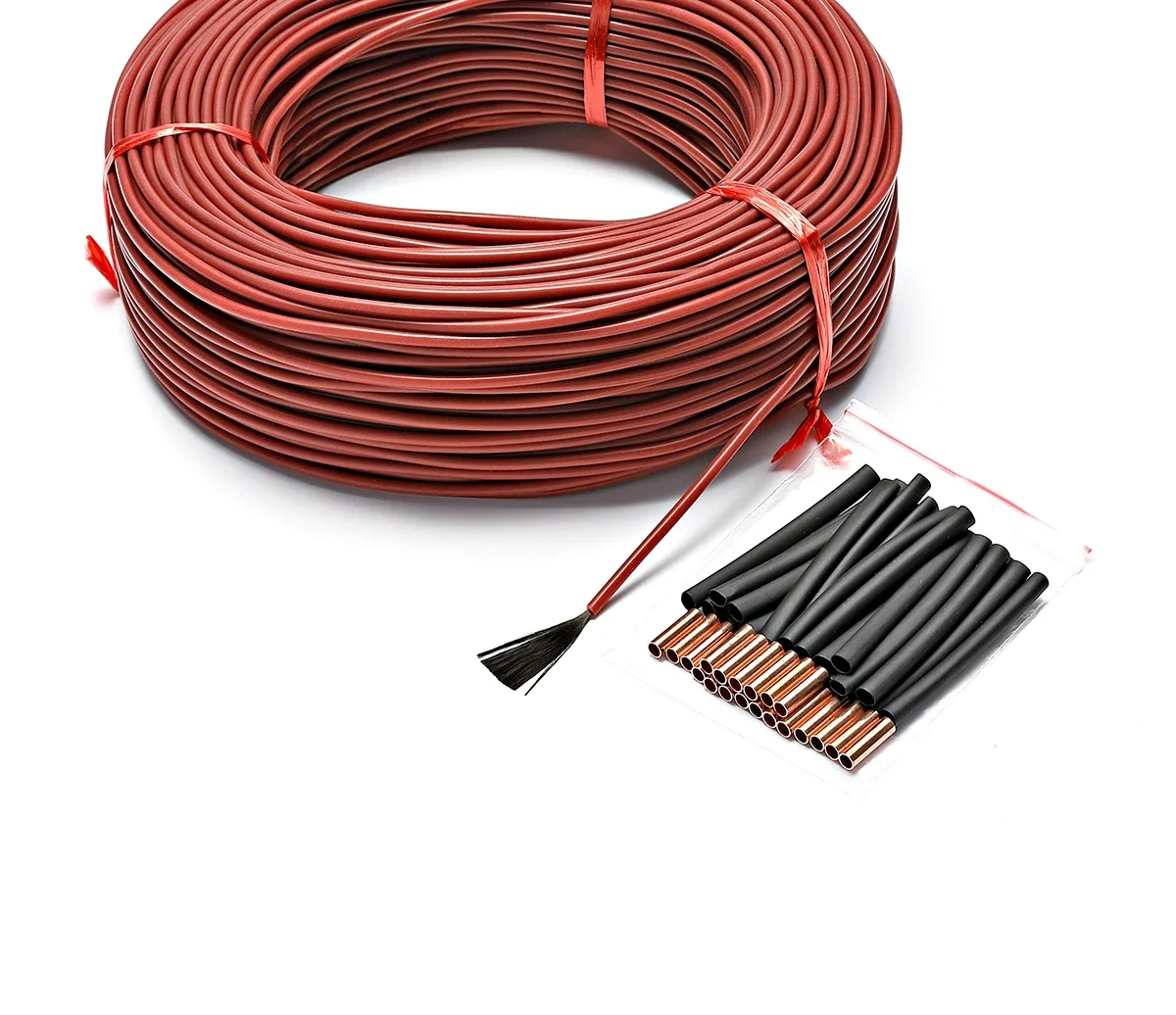

Package Includes:

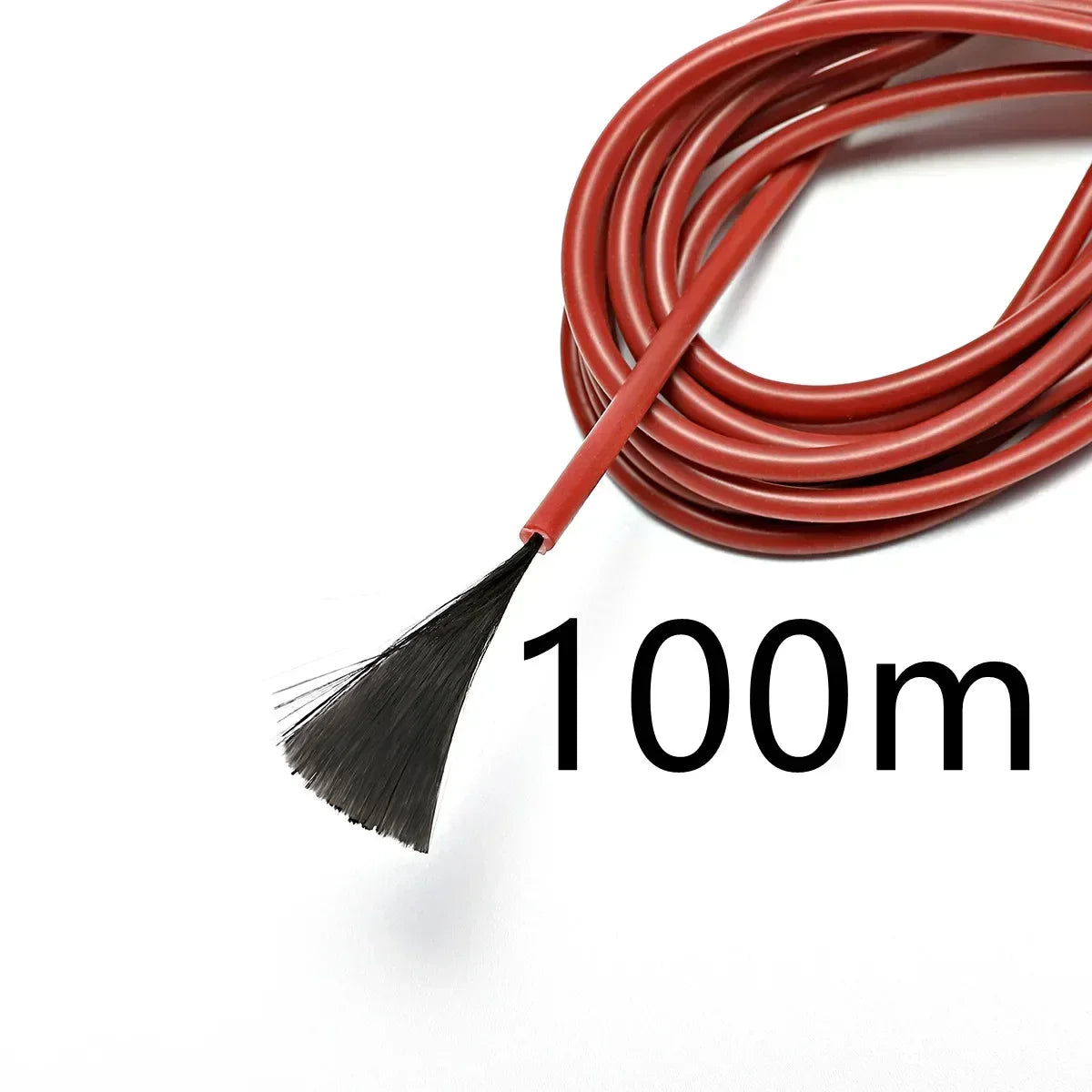

1. Buy 100m = 100m cable + 20 pcs copper tube + 20 pcs sleeves

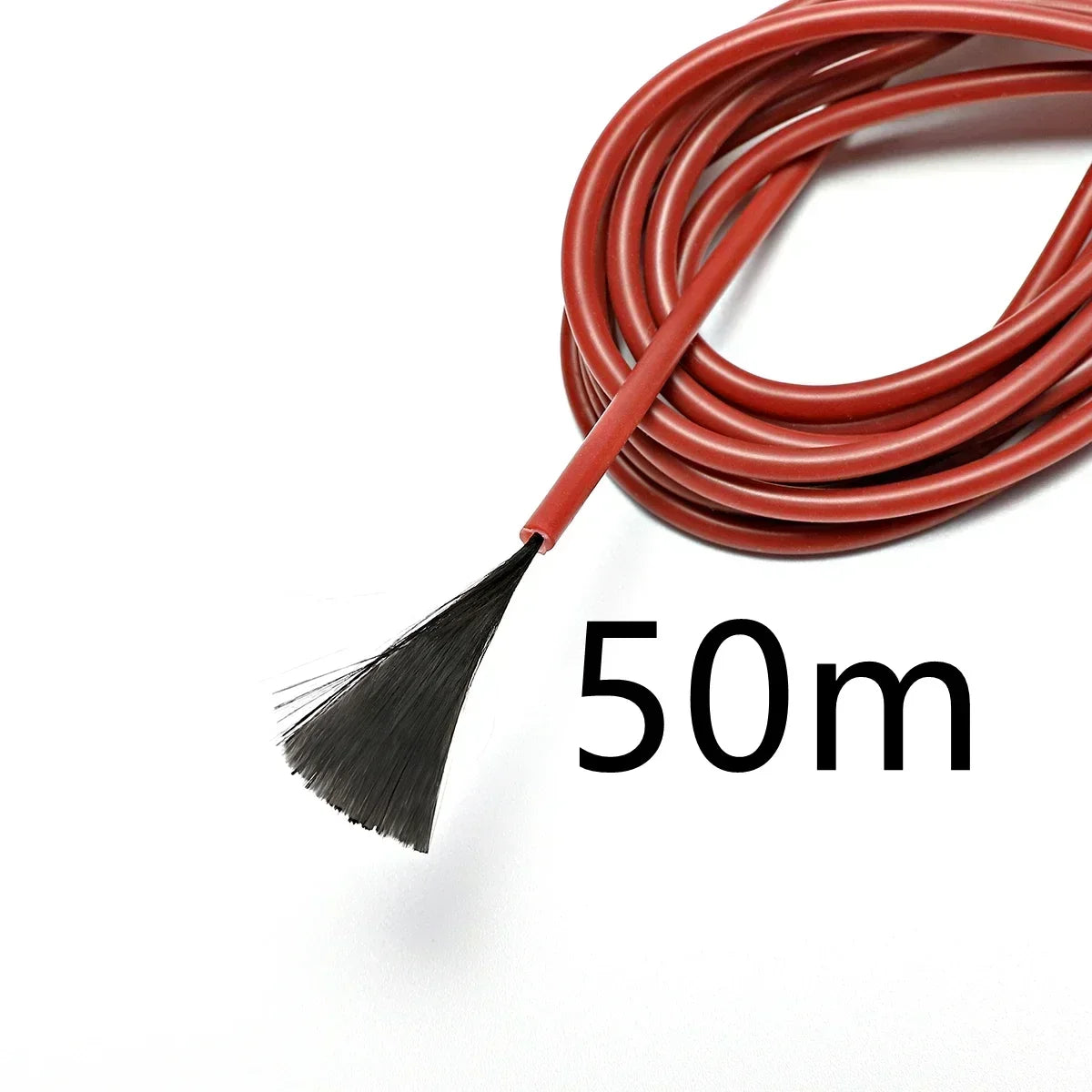

1. Buy 50m = 50m cable + 10 pcs copper tube + 10 pcs sleeves
1. Buy 30m = 30m cable + 6 pcs copper tube + 6 pcs sleeves
1. Buy 20m = 20m cable + 4 pcs copper tube + 4 pcs sleeves
1. Buy 15m = 15m cable + 4 pcs copper tube + 4 pcs sleeves
1. Buy 10 m = 10m cable + 2 pcs copper tube + 2 pcs sleeves

How to calculate power?

Voltage*Voltage÷resistance=electric power

12K=33ohm/meter

For example, using 10m 12K carbon fiber cable on 220V, the power is:

220V*220V÷(10meters*33Ω)=150W

For example,  using  15m 12K carbon fiber cable on 220V, the power is:

220V*220V÷(15meters*33Ω)=100W

The longer length, the smaller power, and lower heating temperature.

Product Applications:

1. Floor heating for Home and office: Homes, villas, hotels, office buildings, hospitals, shopping malls

2. Floor heating for public areas: Swimming pool, soccer field, gymnasium, museum, memorial hall, the kindergarten

3. Floor heating for large public facilities: Bus terminal, parking lot, airport, highways

4. Floor heating for professional field: Botanical garden, greenhouse, laboratory

And other heating applications..etc...

Product Advantages:

1. High energy-efficient: Don't need other transmission medium, the electrothermal conversion efficiency is above 98%.

2. Comfortable and healthy: New infrared floor heating, make the temperature uniformity, promote blood circulation.

3. Easy to install: The carbon fiber heating wire cost a little, and has a long life span,  an investment, life-long benefit, low maintenance costs.

And etc...
